| 원래 장소 | 중국 |
| 브랜드 이름 | Bely |
| 인증 | CE, MSDS, UN38.3,ROHS |
| 모델 번호 | BLY-LFP-24V80AH |

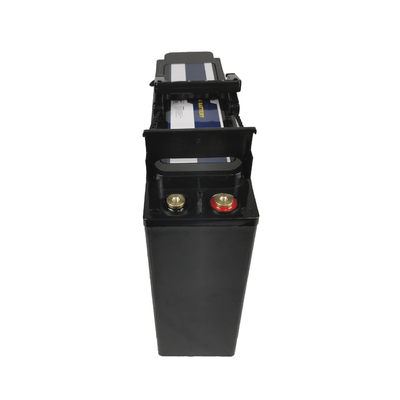

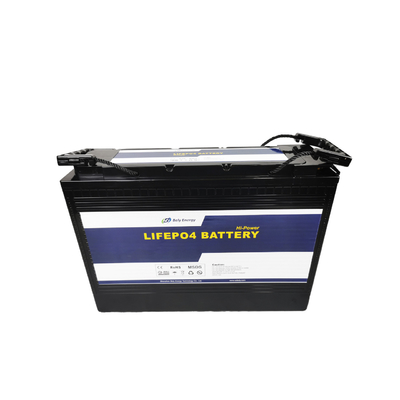

Bely 24V 80Ah Marine Lithium Battery 24V power wall For refuge boat / solar power system / City Grid
Are you looking for the the best LiFePO4 battery?
Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
Description of LiFePO4 Battery
1. Very suitable for RV and replace the traditional lead acid battery with battery size: 552mm x 110mm x 240mm.
2. More than 2000@80% DOD 25℃.
3. High discharging current capacity, working well with most of inverters in the market.
4. Prismatic cells UL1642 & UN38.3 & ICE62619 certified, packs CE & 38.3 & MSDS.
5. Series & Parallel connections are available.
6. OEM & ODM service are availble.
BATTERY CHARGING
Use the suitable lithium battery charger. Waiting until the battery is fully charged.
Specification of Lifepo4 Battery 24v 80AH
| Specification | Parameter | Remarks |
| Nominal | Voltage | 12.8V |
| Capacity | 80Ah/2048Wh | |
| Physical | Dimension | 552mm x 110mm x 240mm |
| Weight | 17KGS | |
| Electrical | Discharge Voltage | 25.6V |
| Charge Voltage | 25.6~29.4V | |
| Charging Current | 40A | |
| Discharging Current | 60A | |
| Others | Charging Temperature Range | 0~55℃ |
| Discharging Temperature Range | -20~60℃ | |
| Storage Temperature Range | -20~60℃ | |
| Cycle Life | >2000Cycles | |
| Internal Impedance | ≤20mΩ | |
| Connector | Copper pillar | |
| Protection Class | IP65 | |
| Battery Cells Type | Prismatic | |
Battery Management System(BMS)
The battery management system (BMS) built into each battery ensures that the battery switch off in the event of under voltage or overload and automatically again turns on as soon as the problem is resolved.
- Protection of the cell against under voltage by switching off the load in good time.
- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.
- Shutting down the system in the event of excess temperature.
- Charging of the battery is stopped in case of under temperature.
Application of LiFePO4 Battery
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Packing&Shipping
Strong and protective package way will protect each battery well.
Our Services & Strength
Storage and transportation
The battery must be packed and protected well during transport.
The lithium battery must be transported according to the rules for transport, these should always be followed (transportation code UN3480/UN38.3).
Never lift the battery by the terminals, only by the handles.
The battery should be stored in temperatures from -10℃ to +30℃. During transport, the battery should be about 50-60% charged.
The battery should be charged every three months to keep it active so that it always works maximum.
FAQ:
Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the leadtime for samples is 7-14 days.and buyer pay for sample cost and shipping cost.
Q2: Do you provide after-sales serive?
A2: Yes,the warranty is 2 years, if any quality problems on our side in this period, we can send new one as replacement.
Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we gurantee on-time shipment,we also provide excellent after sales service
Q4: Do you accept OEM/ODM?
A4: Yes,it is avaliable.
Q5: What is your lead time for the mass production?
A5: General speaking, about 35-60 days depending on different items after getting down payment and confirmation about the samples.
Q6:Are you battery real capacity?
A6:All of our battery cells with Grade A,100% new and real capacity.
Q7:Are you a factory or a trading company?
A7:Shenzhen Bely Energy Technology Co.,Ltd. is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer and trading company, welcome to visit.
Q8: What kind of certificates do you have?
A8: We can provide CE, MSDS, UN38.3,ROHS if your order quantity is big.
