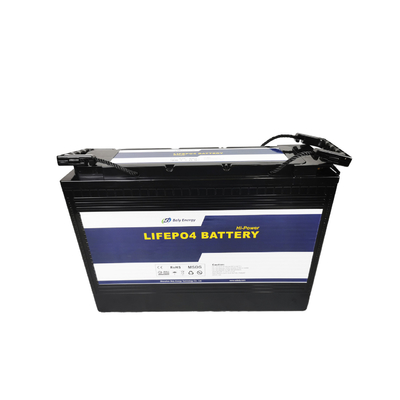

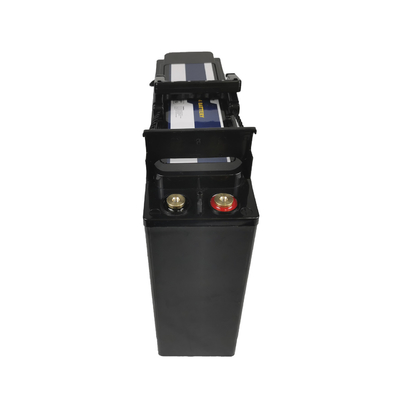

Communication Station 24V LiFePO4 Battery 24v 80ah Lithium Battery 2000 Cycles

The Strongest Momentum 24V LiFePO4 Battery 24V 80Ah Lithium Ion battery

For Solar energy system / Communication station

Are you looking for the the best LiFePO4 battery?

Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and offers a higher charge/discharge cycles, about 3,000 cycles at 90% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.

Description of LiFePO4 Battery

1. Very suitable for RV and replace the traditional lead acid battery with battery size: 552mm x 110mm x 240mm.

2. More than 2000@80% DOD 25℃.

3. High discharging current capacity, working well with most of inverters in the market.

4. Prismatic cells UL1642 & UN38.3 & ICE62619 certified, packs CE & 38.3 & MSDS.

5. Series & Parallel connections are available.

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. Contact with our sales team to get more informations about us and products.

Period of Warranty

The period of warranty is 2 years from the date of shipment. Maximum guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.

BATTERY CHARGING

Use the suitable lithium battery charger. Waiting until the battery is fully charged.

Specification of Lifepo4 Battery 24v 80AH

Battery Management System(BMS)

The battery management system (BMS) built into each battery ensures that the battery switch off in the event of under voltage or overload and automatically again turns on as soon as the problem is resolved.

- Protection of the cell against under voltage by switching off the load in good time.

- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.

- Shutting down the system in the event of excess temperature.

- Charging of the battery is stopped in case of under temperature.

Application of LiFePO4 Battery

> Wind-Solar energy system

> Solar street lights

> Off-grid energy storage
> Household energy storage

> Telecom backup system

> Mobile base stations
> Emergency backup energy sources

> Uninterruptible power system

> Grid load shifters
> Electric Golf Car

> Electric vehicles

> Electric motorcycles
> Electric forklifts

> Electric boats, etc.

Storage and transportation

The battery must be packed and protected well during transport.

Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.

In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.

Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.

Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.

Important instructions

Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.

FAQ:

Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the leadtime for samples is 7-14 days.and buyer pay for sample cost and shipping cost.

Q2: Do you provide after-sales serive?
A2: Yes,the warranty is 2 years, if any quality problems on our side in this period, we can send new one as replacement.

Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we gurantee on-time shipment,we also provide excellent after sales service

Q4: Do you accept OEM/ODM?
A4: Yes,it is avaliable.

Q5: What is your lead time for the mass production?
A5: General speaking, about 35-60 days depending on different items after getting down payment and confirmation about the samples.

Q6:Are you battery real capacity?

A6:All of our battery cells with Grade A,100% new and real capacity.

Q7:Are you a factory or a trading company?

A7:Shenzhen Bely Energy Technology Co.,Ltd. is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer and trading company, welcome to visit.

Q8: What kind of certificates do you have?
A8: We can provide CE, MSDS, UN38.3,ROHS if your order quantity is big.
