원래 장소: | 중국 |
브랜드 이름: | Bely |
인증: | CE, MSDS, UN38.3,ROHS |
모델 번호: | BLY-LFP-24V40AH |
최소 주문 수량: | 10 PC |
---|---|
가격: | Negotiable |
포장 세부 사항: | 통 |
배달 시간: | 샘플, 35-60days 프프라 대량 생산을 위한 7-14 일 |
지불 조건: | L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온 |
공급 능력: | 달 당 100000 PC |
타입: | LiFePO4 | 공칭 전압: | 25.6V |
---|---|---|---|
공칭 정전 용량: | 40Ah | 쓸 수 있는 캡스시티: | 1024Wh |
싸이클 수명: | >2000@ DOD 80% | 중량: | 약 10KGS |
차원: | 275 mm(L) X 106 mm(W) X 223 mm(H) | OEM / ODM: | 받아들일수있는 |
하이 라이트: | 백업 시스템을 위해 자동차용 밧데리,리튬 트롤링 모터 배터리 24V,40Ah 파워월을 윤창하는 벨리 리튬 |

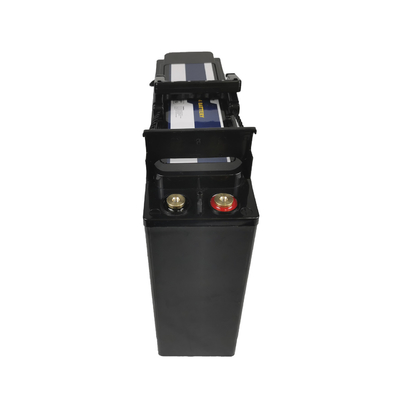

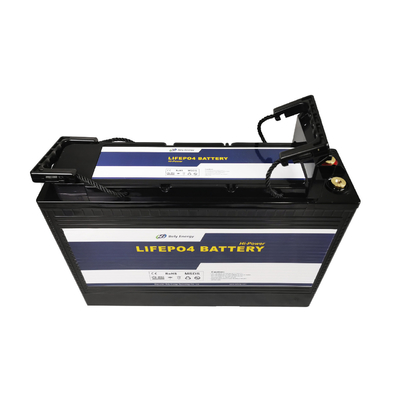

Bely Lithium Trolling Motor Battery 24V LiFePO4 Battery 24 40Ah Powerwall Battery For Back-Up System / Motorhome
Are you looking for the the best LiFePO4 battery?
Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
Product Performance Description
Information
BATTERY MANAGEMENT SYSTEM
The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.
Protection of the cell against under voltage by switching off the load in good time.
- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.
- Shutting down the system in the event of excess temperature.
- Charging of the battery is stopped in case of under temperature.
EASY REPLACEMENT THE EXISTING BATTERY
The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary.
BATTERY CHARGING
Use the suitable lithium battery charger. Waiting until the battery is fully charged.
PERFORMANCE / EFFICIENCY
A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.
waterproof
more than a layer of protection more than a rest assured
The terminal has a removable waterproof cover to protect it from water on rainy days, and easy to stack.
Specification
Model | BLY-LFP24V40AH |
Nominal Voltage | 25.6V |
Nominal Capacity |
40Ah |
Usable Capacity | 1024Wh |
Dimension | 275mm(L)*106mm(W)*223mm(H) |
Weight | 10kgs |
Cycle Time | >2000@DOD80% |
Working Temperature |
-20~60℃
|
Discharge Voltage | 25.6V |
Charge Voltage | 25.6~29.4V |
Internal Impedance | <20mΩ |
Charge Current | 40A |
Discharge Current | 60A |
Life Time @+25℃ | 10Years |
Protection Class | IP65 |
Mateial | ABS(anti-UV) |
BMS | Integrated & inbuilt in the battery |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. Contact with our sales team to get more informations about us and products.
Applications:
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Packaging & Delivery
Packaging Details 1pcs/carton box
Port: Shenzhen (Yantian/Shekou/Chiwan) or Hong Kong
Packing&Shipping
Strong and protective package way will protect each battery well.
LiFePO4 Battery Performance and Test Conditions
1. Standard test conditions
Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.
2. Standard Charge/Discharge
Standard Charge: 0.2C
Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.
Standard Discharge: 0.2C
Battery shall be discharged at a constant current of 0.2C to 10V @ 20º ± 5C
FAQ:
Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the leadtime for samples is 7-14 days.and buyer pay for sample cost and shipping cost.
Q2: Do you provide after-sales serive?
A2: Yes,the warranty is 2 years, if any quality problems on our side in this period, we can send new one as replacement.
Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we gurantee on-time shipment,we also provide excellent after sales service
Q4: Do you accept OEM/ODM?
A4: Yes,it is avaliable.
Q5: What is your lead time for the mass production?
A5: General speaking, about 35-60 days depending on different items after getting down payment and confirmation about the samples.
Q6:Are you battery real capacity?
A6:All of our battery cells with Grade A,100% new and real capacity.
Q7:Are you a factory or a trading company?
A7:Shenzhen Bely Energy Technology Co.,Ltd. is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer and trading company, welcome to visit.
Q8: What kind of certificates do you have?
A8: We can provide CE, MSDS, UN38.3,ROHS if your order quantity is big.
