| 원래 장소 | 중국 |
| 브랜드 이름 | Bely |
| 인증 | CE, MSDS, UN38.3,ROHS |
| 모델 번호 | BLY-LFP12V200AH |

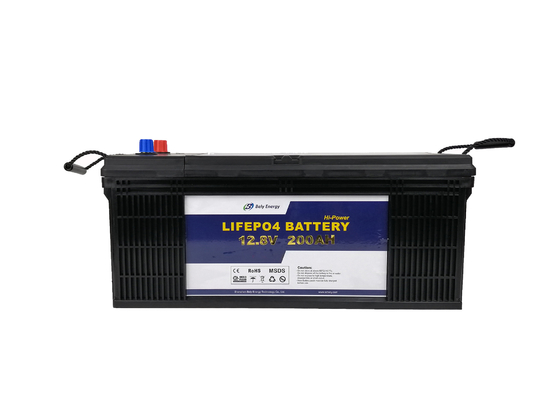

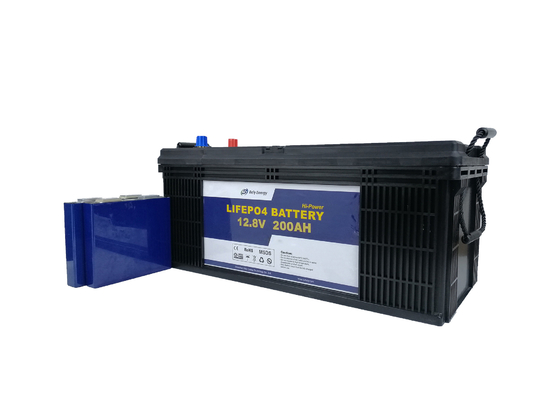

High Quality 12V 200Ah Lifepo4 Battery For Consumer Electronics , EV , Home Appliance
Description of LiFePO4 Battery
1. More than 3000 cycles time and 2 years long guarantee time.
2. More rechargeable time, longer life time, economic and environmental protection.
3. Light weight and portable.
4. LIFEPO4 material more safe.
5. Inbuit BMS multiple security protection.
Safest & Highest-cycle
No leakage, harmful fumes, or potential threat of explosion, LiFEPO4 battery has better thermal and chemical stability. Over 3000 cycles, also the cell is able to deliver virtually full power until it is discharged without harming the battery.
Period of Warranty
The period of warranty is 2 years from the date of shipment. Maximum guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
Specification of Lifepo4 Battery 12v 200AH
| Specification | Parameter | Remarks |
| Nominal | Voltage | 12.8V |
| Capacity | 200Ah/2560Wh | |
| Physical | Dimension | 526mm x 235mm x 217mm/ 237mm |
| Weight | 22.5KGS | |
| Electrical | Working Voltage Range | 10~14.6V |
| End of Charge Voltage | 14.4~14.6V | |
| Recommended Charging Current | 80A | |
| Max. Charging Current | 150A | |
| Max. Continuous Discharging Current | 150A (Less than 25 mins) | |
| Peak Discharging Current (≤20 sec.) | 200A | |
| Others | Charging Temperature Range | 0~55℃ |
| Discharging Temperature Range | -20~60℃ | |
| Storage Temperature Range | -20~60℃ | |
| Cycle Life | ≥3000Cycles | |
| Internal Impedance | ≤20mΩ | |
| Connector | Copper pillar | |
| Protection Class | IP65 | |
| Battery Cells Type | Prismatic | |
Battery Management System(BMS)
Passive balancing (active balance optional ), low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life.
Battery Benefits
High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
High max continuous discharging current
Light weight
Low self-discharge
Application
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Important instructions
Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.
▪ Only use the battery for the application for which it is intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified specialists.
▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.
Caution:
- Do not store at above 60℃(140℉);
- Do not dispose of the battery in fire or water;
- Do not expose to high temperature, disassemble or short circuit;
- New Battery pack must be fully charged before use.
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 2 years warranty.
Why Choose Us
1. We offer one-stop power solutions, which saves design time and cost for customer:
--Pack design / External Case design / BMS design
2.Strict quality control system which enhances customers' competitiveness:
--100%PCM test by IQC
--100% Capacity test by OQC
3. Delivery on time & excellent service:
--Fast Delivery in 10days if stock
--8h response & 48h solution
