| 원래 장소 | 중국 |
| 브랜드 이름 | Bely |
| 인증 | CE, MSDS, UN38.3,ROHS |
| 모델 번호 | BLY-LFP12V120AH |

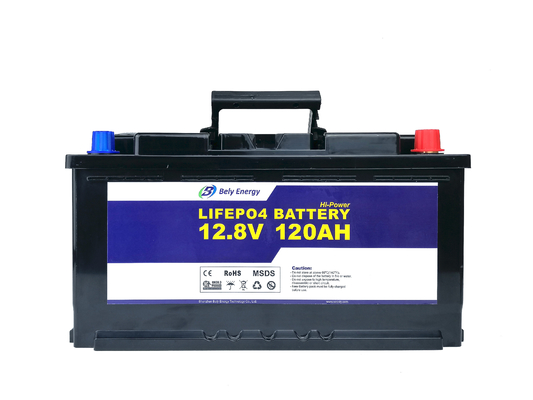

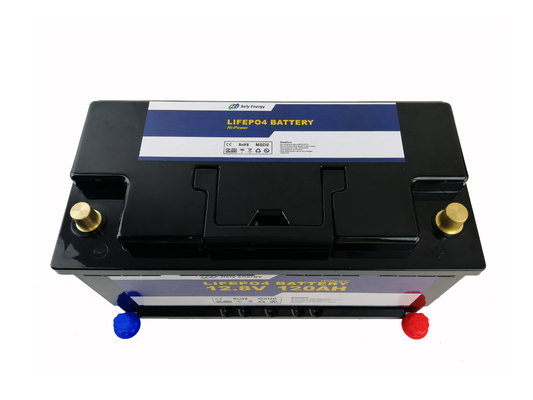

Used For Solar System LiFePO4 Battery 12v 120Ah Deep Cycle Lithium Battery
For Home Solar Energy Storage System
Are you looking for the the best LiFePO4 battery?
Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. Contact with our sales team to get more informations about us and products.
Bely 12V 120Ah LiFePO4 battery pack support max contiunous discharging current 100A and Parallel Connection Or Series Connection Possible(Maximum 4 Units). Build in Smart BMS with high safety control.
12V 120Ah LiFePO4 Battery Pack With BMS For Solar System,UPS Backup,RV,Electric Scooter,Golf Cart
Description of LiFePO4 Battery
1. Very suitable for RV and replace the traditional lead acid battery with battery size: 355mm x 175mm x 190mm.
2. More than 3000@90% DOD 25℃.
3. High discharging current capacity, working well with most of inverters in the market.
4. Prismatic cells UL1642 & UN38.3 & ICE62619 certified, packs CE & 38.3 & MSDS.
5.Series & Parallel connections are available.
Period of Warranty
The period of warranty is 2 years from the date of shipment. Maximum guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
Specification of Lifepo4 Battery 12v 120AH
| Specification | Parameter | Remarks |
| Nominal | Voltage | 12.8V |
| Capacity | 120Ah/1536Wh | |
| Physical | Dimension | 355mm x 175mm x 190mm |
| Weight | 14KGS | |
| Electrical | Working Voltage Range | 10~14.6V |
| End of Charge Voltage | 14.4~14.6V | |
| Recommended Charging Current | 60A | |
| Max. Charging Current | 100A | |
| Max. Continuous Discharging Current | 100A | |
| Peak Discharging Current (≤20 sec.) | 150A | |
| Others | Charging Temperature Range | 0~55℃ |
| Discharging Temperature Range | -20~60℃ | |
| Storage Temperature Range | -20~60℃ | |
| Cycle Life | ≥3000Cycles | |
| Internal Impedance | ≤20mΩ | |
| Connector | Copper pillar | |
| Protection Class | IP65 | |
| Life Time Designed@+25℃ | 10 Years | |
| Battery Cells Type | Prismatic | |
Passive balancing (active balance optional), low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life.
Application
Motohomes, caravans and RV
Photovoltaics, solar systems and renewable energies
High performance traction/storage battery
Fishing, electric boat motors and sonar
Mobile power supply, camping and leisure
Emergency power supply/UPS
Important instructions
Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.
▪ Only use the battery for the application for which it is intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified specialists.
▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
5. Do not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.
6. Please far away from children or pets.
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 2 years warranty.
